Specifications and measurements
Every number on this page comes straight from Bruno's documents for the Elan SRE-5000.
Specifications
Taken from Bruno's spec sheet (ILS-01617, Rev. P1), dimensional drawing (ILS-01614, Rev. P1), owner's manual and brochure.
Performance
- Rated load
- 300 lb (136 kg) maximum
- Passengers
- 1
- Speed
- Up to 21 ft/min (0.107 m/s). The actual speed depends on the rider's weight.
- Stair angle
- 22° to 52°. The owner's manual lists 45° as the maximum, with special orders up to 52°.
- Rail lengths
- Standard lengths of 15 ft 6 in (4.7 m) and 19 ft 8 in (6.0 m), cut to fit your stairs
- Unit weight
- 153 lb (69.4 kg) packaged, without a rider, for a typical 15 ft 9 in (4.8 m) installation
Seat, armrests and footrest
- Between armrests
- 20½ in (520 mm)
- Seat cushion width
- 15¼ in on drawing ILS-01614, and 15.38 in (391 mm) in the brochure
- Seat depth
- 16¼ in on drawing ILS-01614, and 14.1 in (358 mm) in the brochure
- Footrest
- 10.5 in long × 10.75 in wide
- Seat height
- 21½–24½ in on the standard chair, adjustable in 1 in steps. Power options change it.
- Seat swivel
- Locks at 0°, 67° and 90°. It swivels at the top landing only.
- Armrests
- Attached to the seat frame. Each one folds back separately.
Rail and mounting
- Rail
- Extruded aluminum with a covered metal gear rack. Sections join with bolted plates.
- Mounting
- Clamps anchored to the stair treads. How many depends on the rail length.
- Rail from wall
- 5 in recommended, or 6 in with a folding rail
- Rail above step noses
- 1.5 in (38.1 mm), or 3.0 in (76.2 mm) with a folding rail
- Installation side
- Left- or right-hand
Power and drive
- Batteries
- Two 12 V, 3.2 Ah sealed, maintenance-free lead-acid batteries (24 V DC)
- Charger
- Input 100–240 V AC, 1 A. Output 24 V DC, 1 A. Continuous monitoring with full primary cut-off.
- Drive
- 24 V DC, 12 A direct-drive self-locking geared motor with right-angle worm gearbox (0.29 HP max)
- Final drive
- Integrated 8 DP gear rack on the rail, spur gear on the gearbox output shaft
- Motor controller
- 24 V DC PWM controller with acceleration ramping
- Braking
- Dynamic motor braking, worm gearbox, electro-mechanical motor brake and overspeed protection
- Power outage
- 12 to 24 hours with the power disconnected. The number of trips depends on the slope, rail length, temperature and rider weight.
- On/off switch
- Keeps the batteries from draining when the lift sits unused for a long time
Controls
- Armrest control
- 3-position paddle. Hold it to move.
- Call/send
- Two infrared remotes. Hold the button to move the chair. They need a clear line of sight to it.
Listing and standards
- Listing
- ETL (Intertek) C-US listed, control number 4004689
- Safety standard
- ANSI/ASME A18.1-2023, Section 7
- Electrical standard
- CSA B44.1:25 / ASME A17.5-2025
- Use
- Private homes only, indoors, in enclosed heated spaces above 35°F (2°C)
- Bruno testing
- Life-cycle tested at full rated load on a 45° slope with a 15 ft 9 in rail. The charger is UL tested and listed to UL 1310.
Options
Each one is ordered separately. The standard Elan doesn't include any of them.
- Keyed call/send controls
- Power swivel seat (turns up to 85° at the top landing)
- Power folding footrest
- Manual folding rail
- Power folding rail

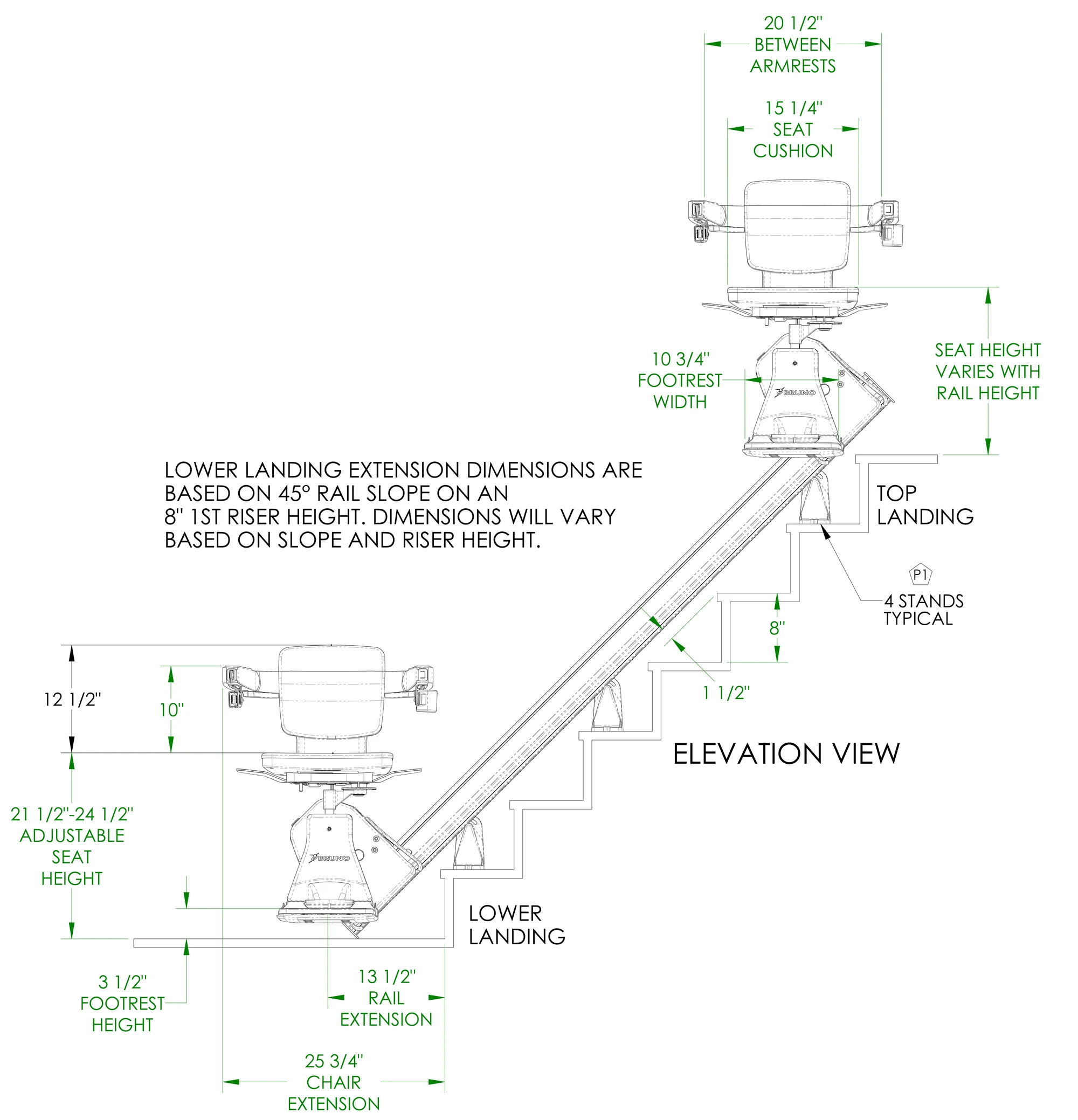

Measurements and drawings
Choose a view to see Bruno's drawing, its key measurements and what each one means.
This drawing assumes a 45° staircase with an 8 in first step. On your stairs, the numbers at the bottom will change with the slope and the height of the first step.
(opens the drawing full size in a new tab)Tap a drawing to open it full size.
- Seat height
- 21½–24½ in
- From the floor to the top of the seat. Adjusts in 1 in steps. Power options change it (see the table below).
- Footrest height
- 3½ in
- From the floor to the top of the footrest.
- Seat to top of backrest
- 12½ in
- From the top of the seat to the top of the backrest.
- Seat to top of armrests
- 10 in
- From the top of the seat to the top of the armrests.
- Rail extension
- 13½ in
- How far the rail runs out onto the floor, measured from the face of the bottom step. It changes with the slope of your stairs and the height of the first step. A folding rail changes it too.
- Chair extension
- 25¾ in
- How far the parked chair reaches out onto the floor, measured from the face of the bottom step. It changes with the slope of your stairs and the height of the first step.
- Rail above the step noses
- 1½ in
- The gap between the rail and the front edge of each step. It's at least 2 in on carpeted stairs and 3 in with a folding rail.
- Between the armrests
- 20½ in
- The inside width between the armrests.
- Seat cushion width
- 15¼ in
- The width of the seat cushion on Bruno's drawing. The brochure lists 15.38 in.
- Footrest width
- 10¾ in
- The footrest's width, side to side. The brochure lists its length as 10.5 in.

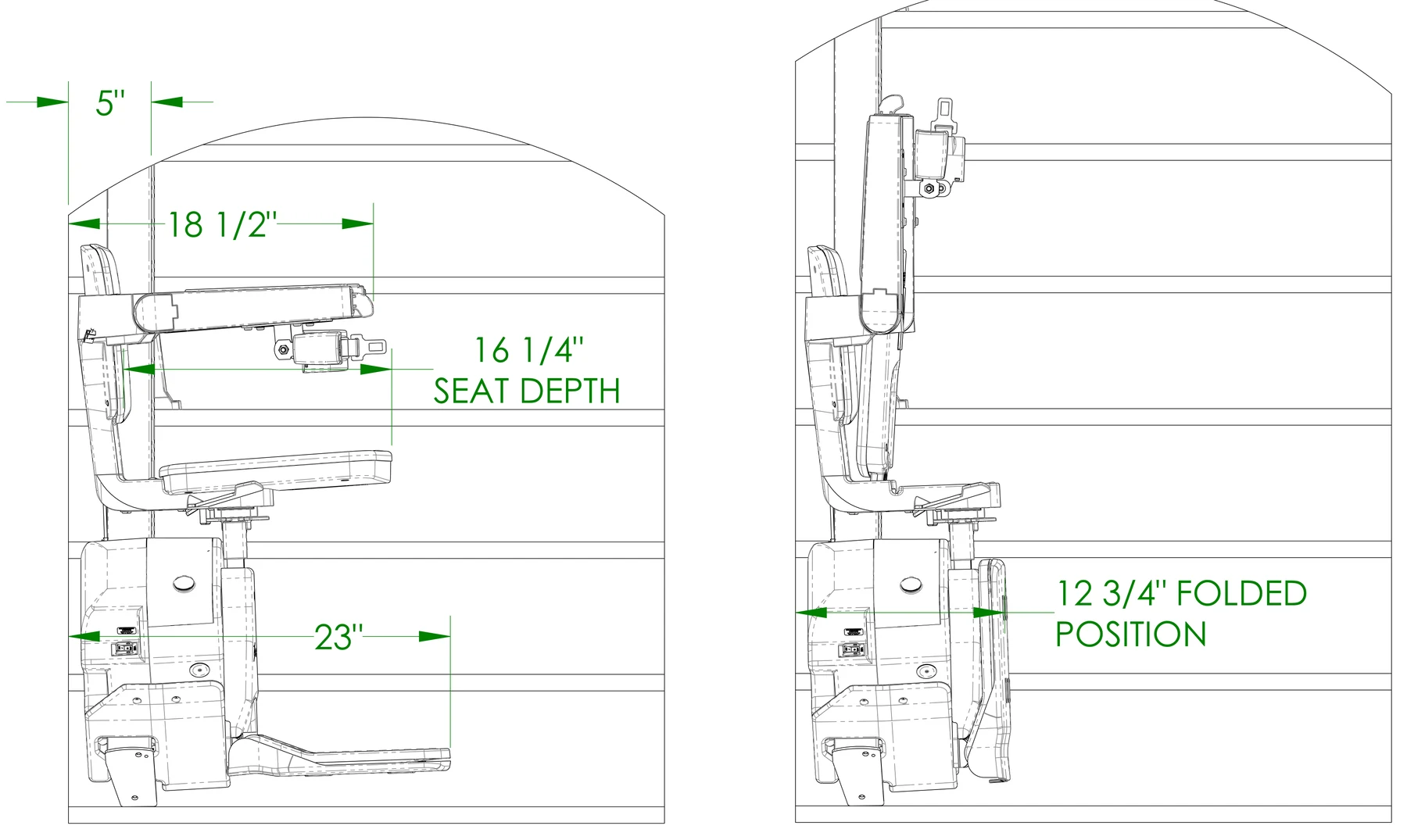

How far the chair sticks out from the wall, ready to ride and folded up. These assume the rail is 5 in from the wall or the nearest obstruction.
(opens the drawing full size in a new tab)Tap a drawing to open it full size.
- Rail position
- 5 in
- From the wall, or the nearest obstruction, to the rail. This is where Bruno recommends it. A folding rail sits 6 in out.
- To the armrest
- 18½ in
- From the wall to the front of the armrest, ready to ride. It changes with the rail position.
- Seat depth
- 16¼ in
- The seat depth on Bruno's drawing. The brochure lists 14.1 in, and neither document says exactly how it's measured.
- To the footrest
- 23 in
- From the wall to the front of the lowered footrest, the farthest point of the chair. It changes with the rail position.
- Folded
- 12¾ in
- From the wall to the front of the chair with the seat, armrests and footrest folded up. It changes with the rail position and the power footrest (see the Power footrest tab).

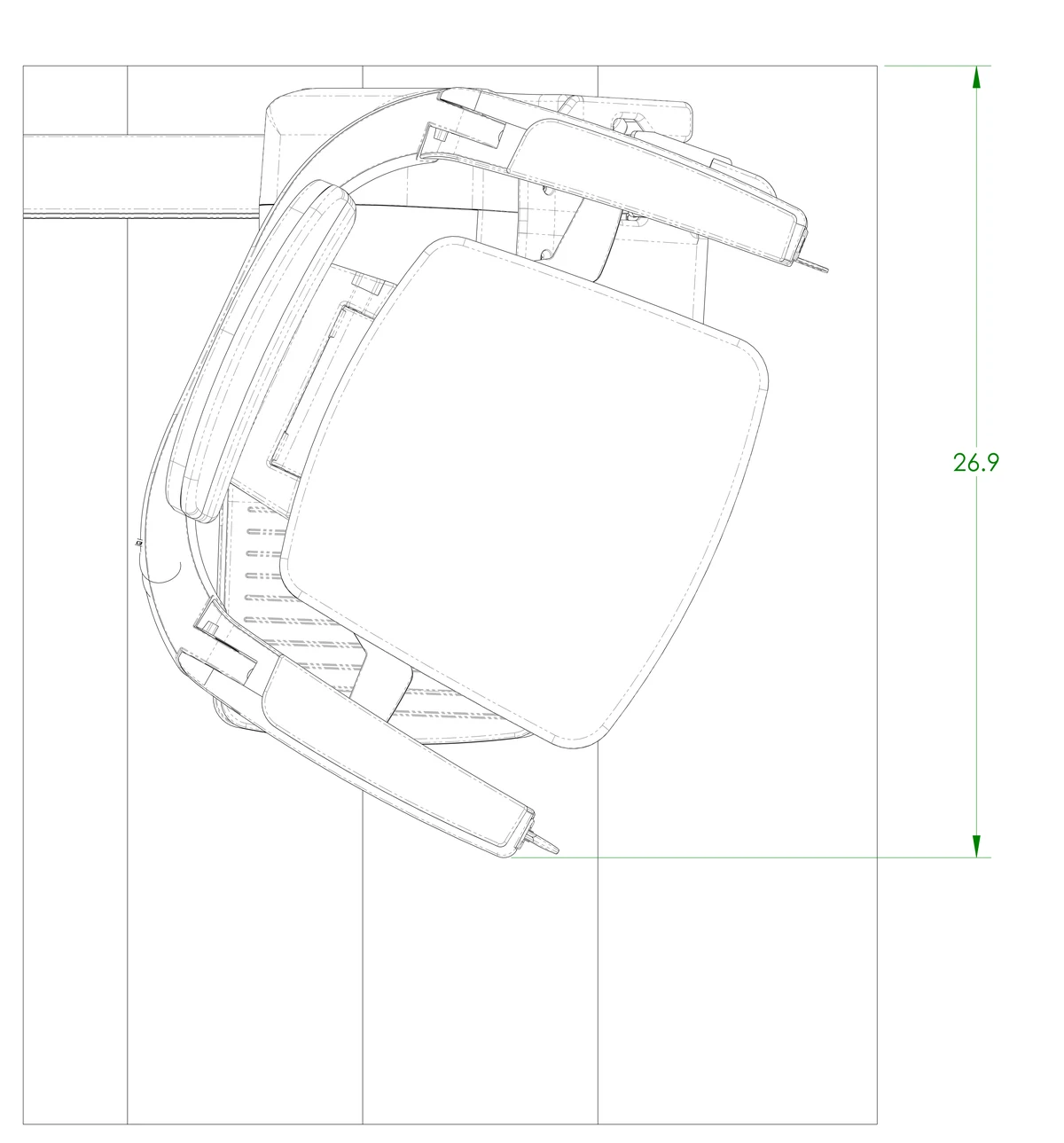

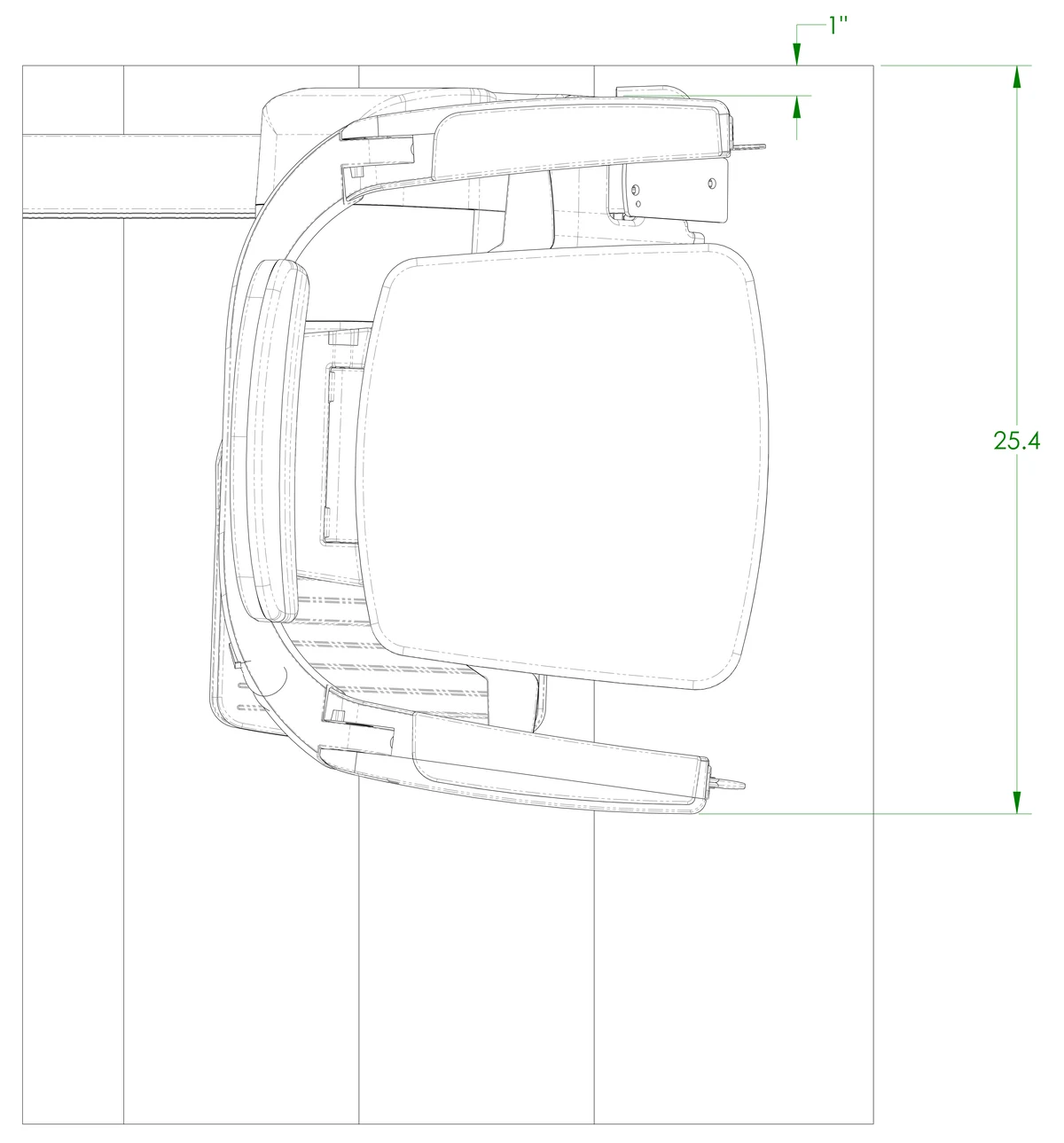

At the top landing, push the swivel lever and turn the seat away from the stairs. It locks at 67° or 90°, so you get off onto the landing instead of toward the steps. It doesn't swivel at the bottom.

26.9 in
From the wall to the farthest point of the turned chair

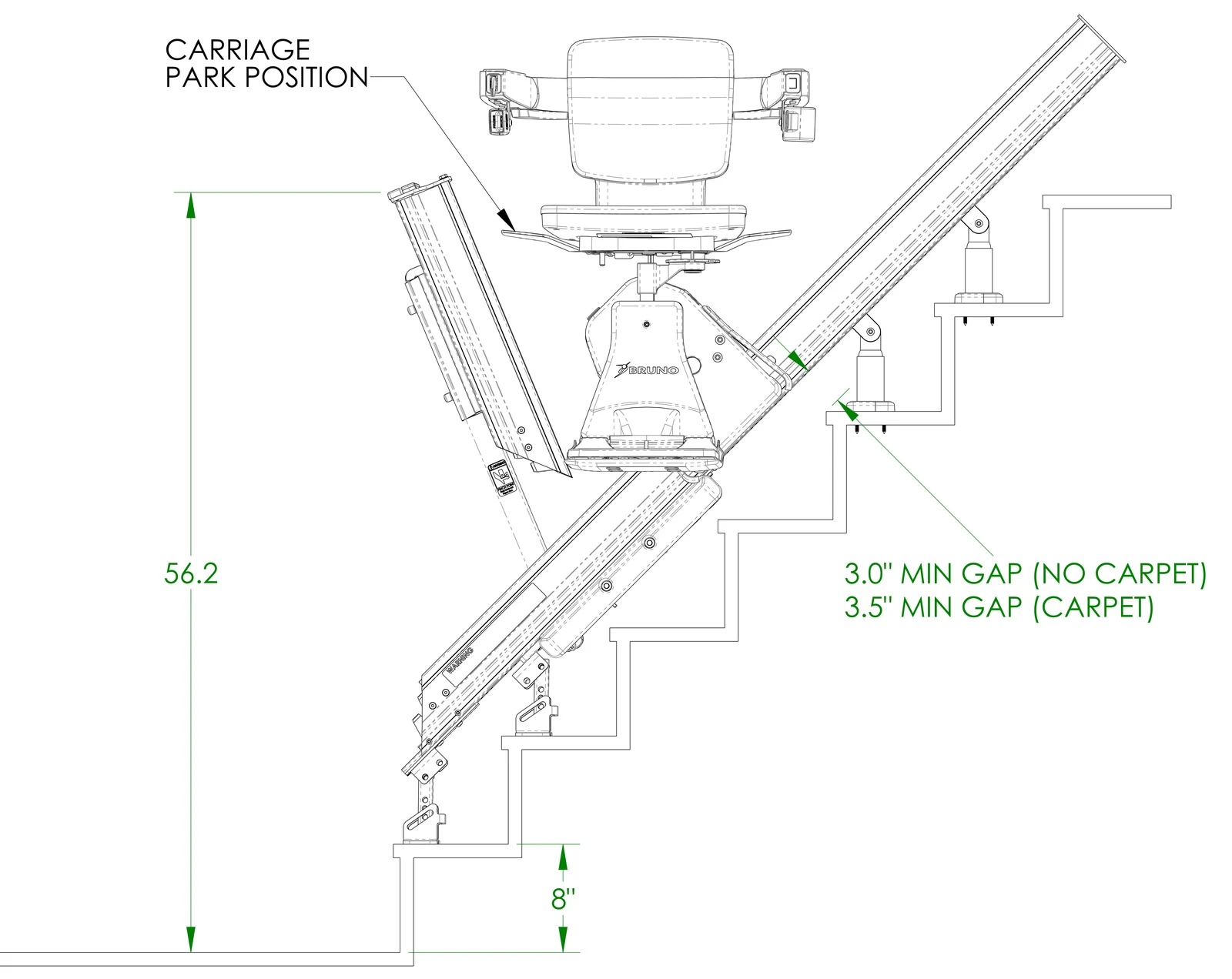

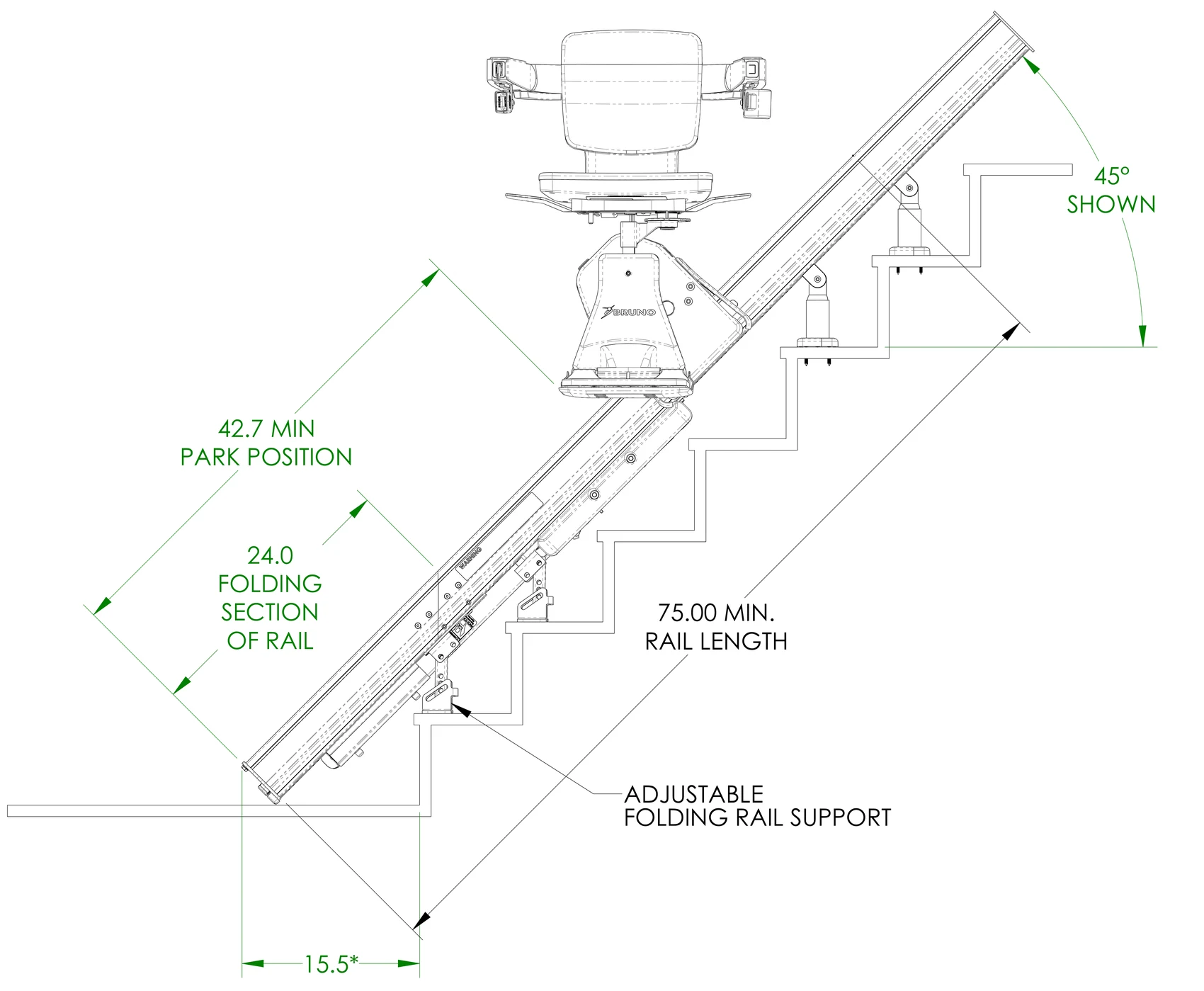

With a manual or power folding rail, the bottom section lifts up so the rail doesn't stick out across the floor. Drawn for a 45° staircase with an 8 in first step.
(opens the drawing full size in a new tab)
(opens the drawing full size in a new tab)
(opens the drawing full size in a new tab)Tap a drawing to open it full size.

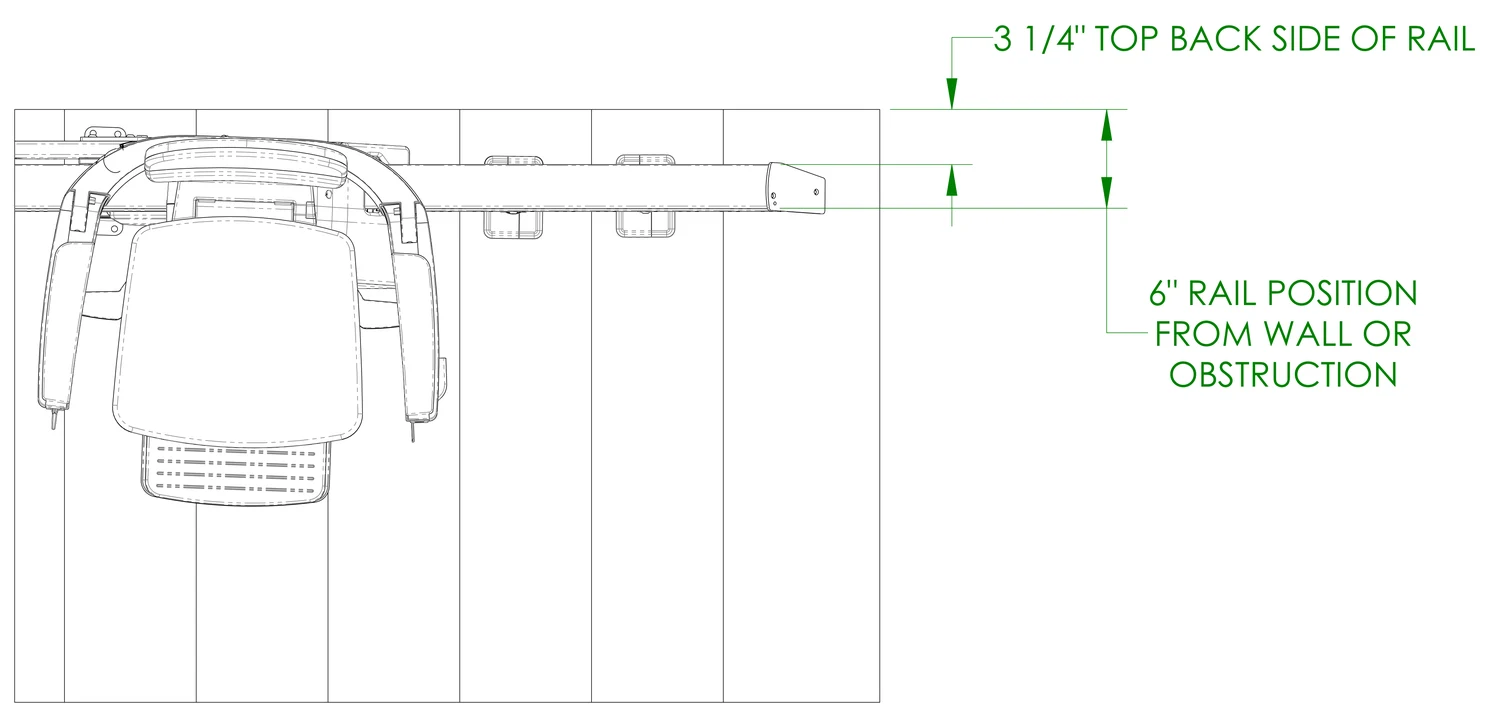

- Rail position
- 6 in
- From the wall, or the nearest obstruction, to the folding rail.
- Rail above the step noses
- 3.0 in
- The smallest gap allowed under the folding rail, or 3.5 in on carpeted stairs.
- Folding section
- 24.0 in
- The length of the hinged bottom section that folds up.
- Minimum rail length
- 75 in
- The shortest a folding rail can be. A one-piece folding rail can't be cut any shorter.
- Minimum park position
- 42.7 in
- Measured along the rail from its bottom end to where the chair parks. Bruno lists this as a minimum. It changes with the slope of your stairs and the height of the first step.
- Landing extension, folded down
- 15.5 in
- How far the lowered rail runs out onto the floor, measured from the face of the bottom step. It changes with the slope of your stairs and the height of the first step.
- Height, folded up
- 56.2 in
- From the floor to the top of the raised rail section. It changes with the slope of your stairs and the height of the first step.

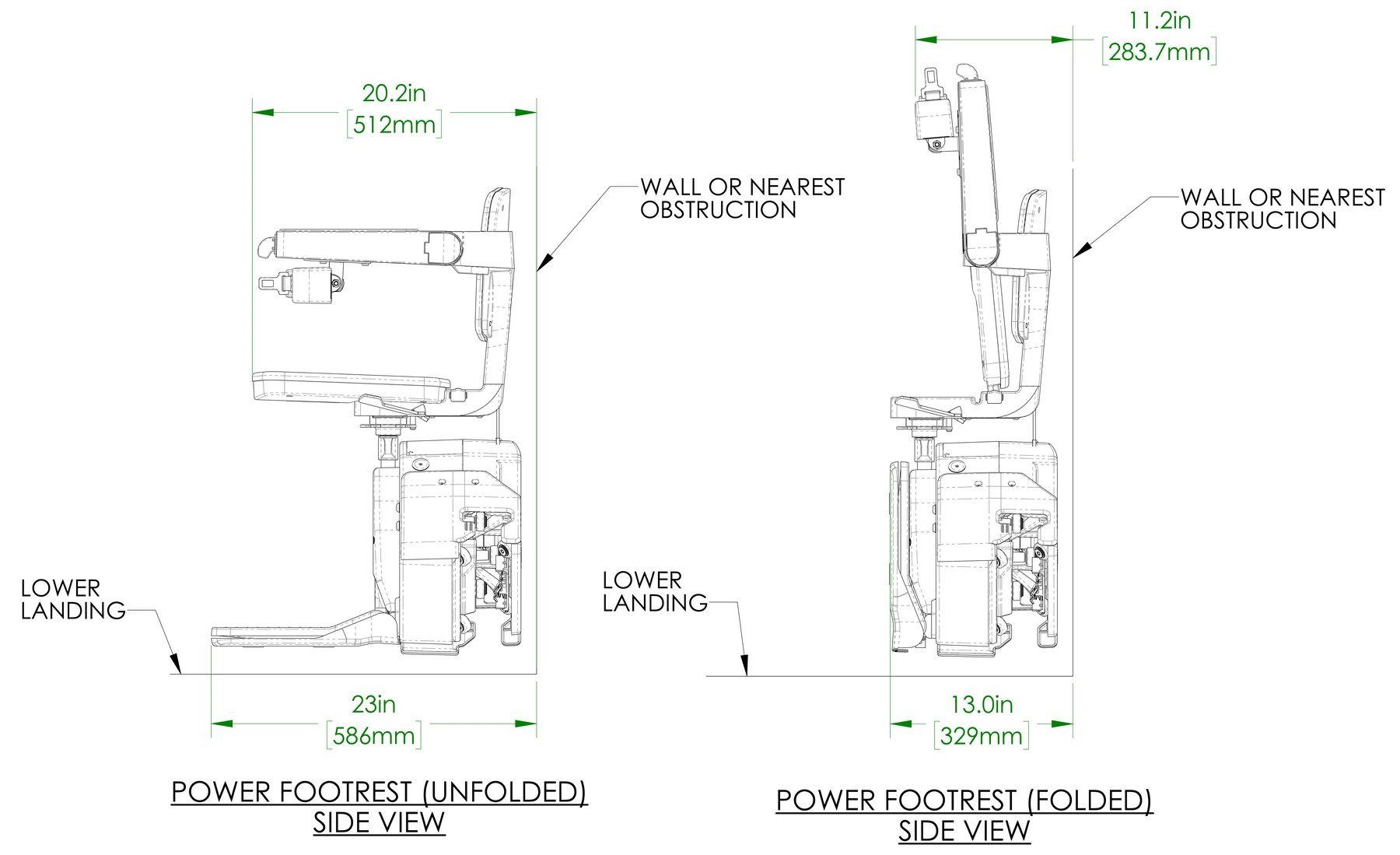

The chair with the power footrest, ready to ride and folded up.
(opens the drawing full size in a new tab)Tap a drawing to open it full size.
- To the footrest, unfolded
- 23 in (586 mm)
- From the wall, or the nearest obstruction, to the front of the lowered footrest.
- Upper reach, unfolded
- 20.2 in (512 mm)
- From the wall, or the nearest obstruction, to the front of the armrest.
- Folded, at the footrest
- 13.0 in (329 mm)
- From the wall, or the nearest obstruction, to the front of the folded footrest.
- Folded, at the top
- 11.2 in (283.7 mm)
- From the wall, or the nearest obstruction, to the front of the folded chair at its top.

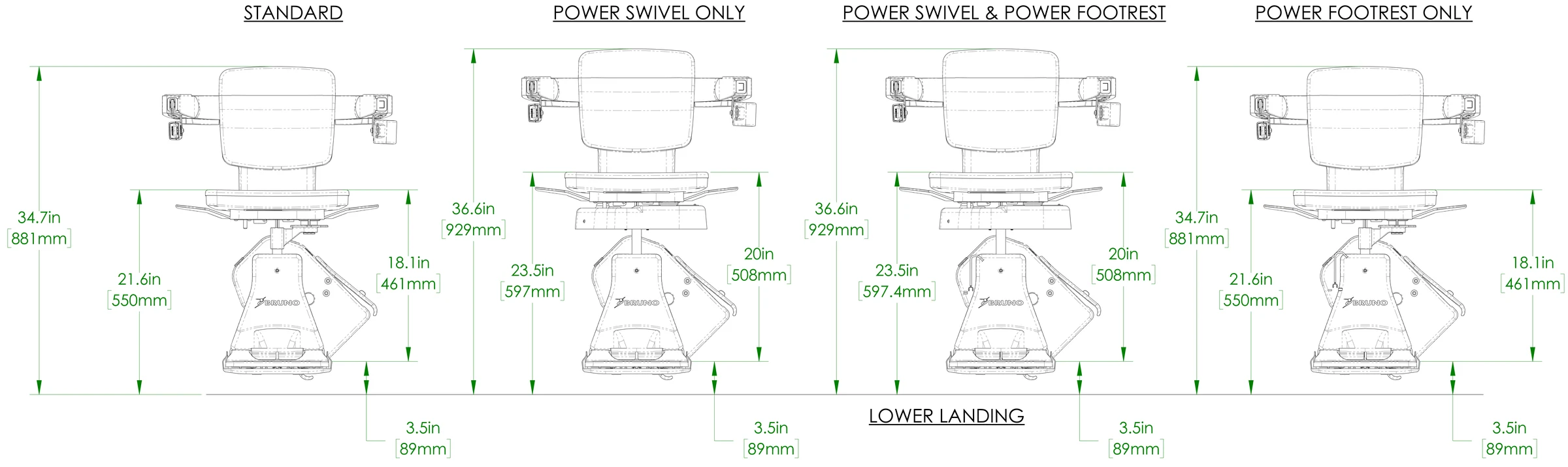

Seat height by configuration
Measured from the floor at the bottom of the stairs, with the seat and footrest at their lowest. The standard seat raises up to 3 in, 1 in at a time. With any power option, it raises up to 2 in.
(opens the drawing full size in a new tab)Standard
- Lowest seat height
- 21.6 in (550 mm)
- Footrest to seat
- 18.1 in (461 mm)
- Floor to top of backrest
- 34.7 in (881 mm)
- Footrest height
- 3.5 in (89 mm)
Power swivel only
- Lowest seat height
- 23.5 in (597 mm)
- Footrest to seat
- 20 in (508 mm)
- Floor to top of backrest
- 36.6 in (929 mm)
- Footrest height
- 3.5 in (89 mm)
Power swivel and power footrest
- Lowest seat height
- 23.5 in (597.4 mm)
- Footrest to seat
- 20 in (508 mm)
- Floor to top of backrest
- 36.6 in (929 mm)
- Footrest height
- 3.5 in (89 mm)
Power footrest only
- Lowest seat height
- 21.6 in (550 mm)
- Footrest to seat
- 18.1 in (461 mm)
- Floor to top of backrest
- 34.7 in (881 mm)
- Footrest height
- 3.5 in (89 mm)
Bruno's main drawing (ILS-01614) gives the standard seat height as 21½–24½ in. This drawing puts the lowest position at 21.6 in.
Where these figures come from
Every figure on this site comes from Bruno's own documents for the Elan SRE-5000. Where they disagree, for example on the seat size in the drawing and the brochure, we show both figures rather than pick one.
- Bruno Elan owner's manual (PDF, opens in a new tab) (P/N 5000-O, 08-06-2026), pages 2–7, 9–14
- Bruno Elan brochure (PDF, opens in a new tab) (2026-05-05-elan-mkt-sl-6), pages 3, 5–6
- Bruno technical specifications ILS-01617 (PDF, opens in a new tab) (ILS-01617 Rev. P1, 04/30/26), pages 1–2
- Bruno dimensional drawing ILS-01614 (PDF, opens in a new tab) (ILS-01614 Rev. P1, 04/13/26), pages 1–3
- Bruno power options drawing ILS-01616 (PDF, opens in a new tab) (ILS-01616 Rev. 0, 03/10/26), pages 1
- Bruno Elan installation manual (dealer) (P/N SRE-5000-I, 08-10-2026), pages 2, 5–6, 9, 11–14, 16–18, 21
- Bruno folding rail install guide (dealer) (P/N 5000-FLDRL-I, 03-27-2026), pages 3
- Bruno Elan tech support guide (dealer) (P/N SRE-5000-TS, 09-17-2026), pages 9, 14–15, 17–18, 21
Manuals and documents
Bruno's documents for the Elan SRE-5000, free to download. Start with the owner's manual. It covers using the lift, charging, care, troubleshooting and the warranty.
- Elan SRE-5000 owner's manualUsing the lift, charging, the remotes, care, storage, troubleshooting and Bruno's warranty (P/N 5000-O, 08-06-2026).PDF, 2.0 MB, 14 pages (opens in a new tab)
- Bruno Elan brochureBruno's overview of the Elan, with its features, options, main specs and warranty.PDF, 7.3 MB, 6 pages (opens in a new tab)
- Technical specifications (ILS-01617, Rev. P1)Bruno's spec sheet, covering capacity, drive, controls, safety features, standards, testing and options.PDF, 203 KB, 2 pages (opens in a new tab)
- Dimensional drawings (ILS-01614, Rev. P1)Side, top and elevation views with the standard dimensions, plus the seat turned at the top and the folding rail.PDF, 2.3 MB, 3 pages (opens in a new tab)
- Power options drawing (ILS-01616, Rev. 0)Seat and footrest heights for the power swivel and power footrest configurations.PDF, 1.1 MB, 1 page (opens in a new tab)
